BRIGGS & STRATTON SQUARE SEGMENT KIT DIAMETER 76.1 MM
BRIGGS & STRATTON

BRIGGS & STRATTON Square Segment Kit Diameter 76.1 mm

TECHNICAL DATA

Brand: BRIGGS & STRATTON
Original code: 499921
Segment measurement [A]: 3.4
Segment measurement [B]: 2.0
Segment type: Painting
Diameter: 76.1 mm
Machine models: 170400 - 170700 - 190400 - 190700 - 7-8 HP

COMPATIBLE WITH:

170402-6015-01
170402-6020-01
170402-6100-01
170402-6111-01
170412-6025-01
170432-6035-01
170432-6070-01
170432-6102-01
170432-6112-01
170432-6113-01
170432-6113-02
170437-6114-01
170437-6114-02
170452-6049-01
170452-6049-03
170452-6105-01
190402-6015-01
190402-6020-01
190402-6029-01
190402-6102-01
190402-6116-01
190402-6120-01
190402-6121-01
190402-6131-01
190402-6132-01
190402-6138-01
190402-6144-01
190402-6151-01
190402-6165-01
190402-6166-01
190406-6142-01
190406-6142-02
190407-6025-01
190407-6122-01
190412-6004-01
190412-6005-01
190412-6023-01
190412-6111-01
190412-6112-01
190412-6114-01

ORIGINAL PART NUMBER: 499921

CODE: 011801

EAN 8033655118013

COMPATIBLE SPARE PART, NOT ORIGINAL

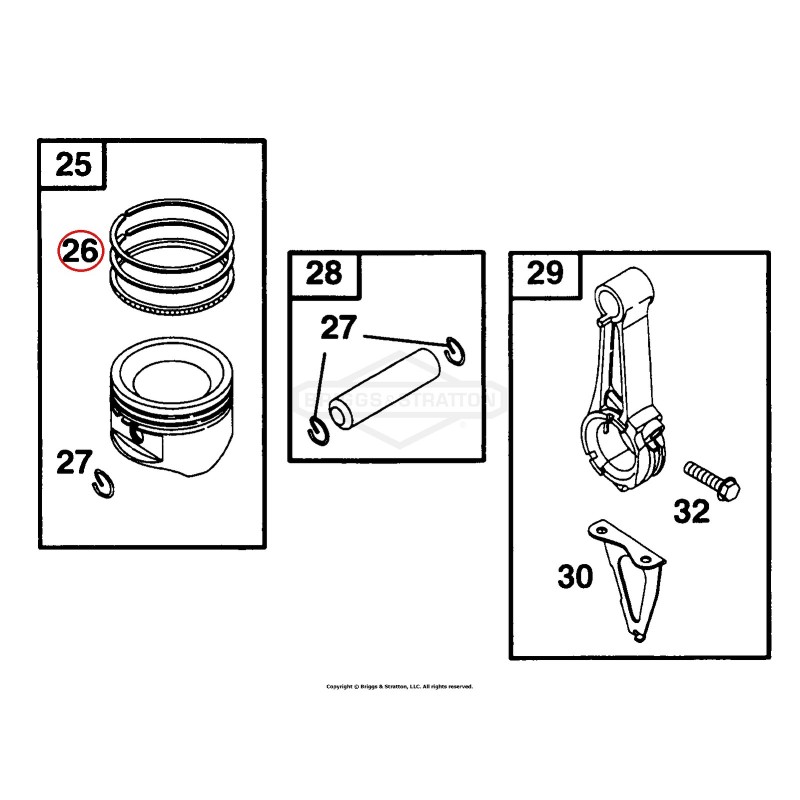

The images include the exploded view drawing: this part is item no. 26 of the diagram «Piston Grp» (BRIGGS & STRATTON 170402-6015-01 - ricambio originale 499921).

Machines whose exploded views include this part.
