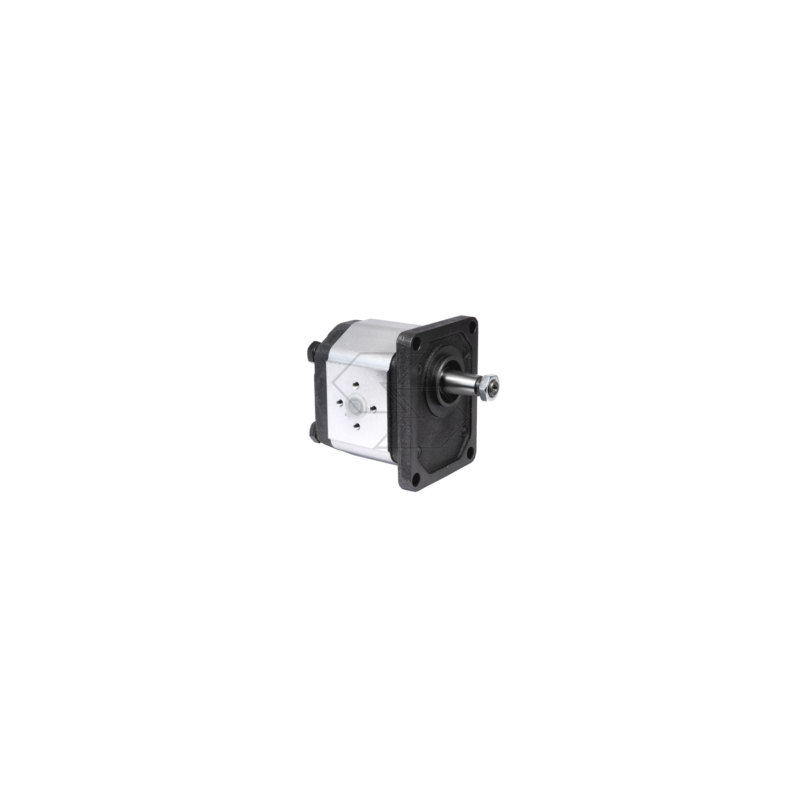

    Gear pump group 2 left rotation - 2VP 10D - displacement 10 cm³ A09829
    Gear pump group 2 left rotation - 2VP 10D - displacement 10 cm³ A09829

    Gear pump group 2 left rotation - 2VP 10D - displacement 10 cm³ A09829

    €207.92
    €226.00
    Save 8%
    Non disponibile
    Quantity :
    account_circleSend to a friend
    Gear pump group 2 left rotation - 2VP 10D - displacement 10 cm³ A09829

    Gear pump group 2 left rotation - 2VP 10D - displacement 10 cm³ A09829



    NameGear pump group 2 left rotation - 2VP 10D - displacement 10 cm³
    MPNA09829
    EAN8023668150209
    InformationTechnical information:
    Type
    2VP 10D
    B
    40
    H
    M8
    THE
    49.3
    D
    20
    M
    102.6
    d
    13
    Revolutions (rpm)
    3000
    h
    M6
    b
    30
    Displacement CC
    10
    Pressure P1 (bar)
    270
    Pressure P2 (bar)
    285
    Pressure P3 (bar)
    300
    Used in:
    Gear Pumps Group 2
    NotesGear pump group 2 left
    B (intake flange center distance): 40 mm
    D (Intake flange hole): 20 mm
    L (distance between fixing holes): 49.3 mm
    Type: 2VP 10D
    H (SUCTION flange drill bits): M8
    M (distance between fixing holes): 102.6 mm
    Displacement CC: 10
    h (flange drill bits DELIVERY): M6
    Pressure P1: 270 bar
    Pressure P2 (bar): 285 bar
    Pressure P3: 300
    b (distance between delivery flanges): 30 mm
    d (flange hole delivery): 13 mm
    Revolutions (rpm): 3000
