- New

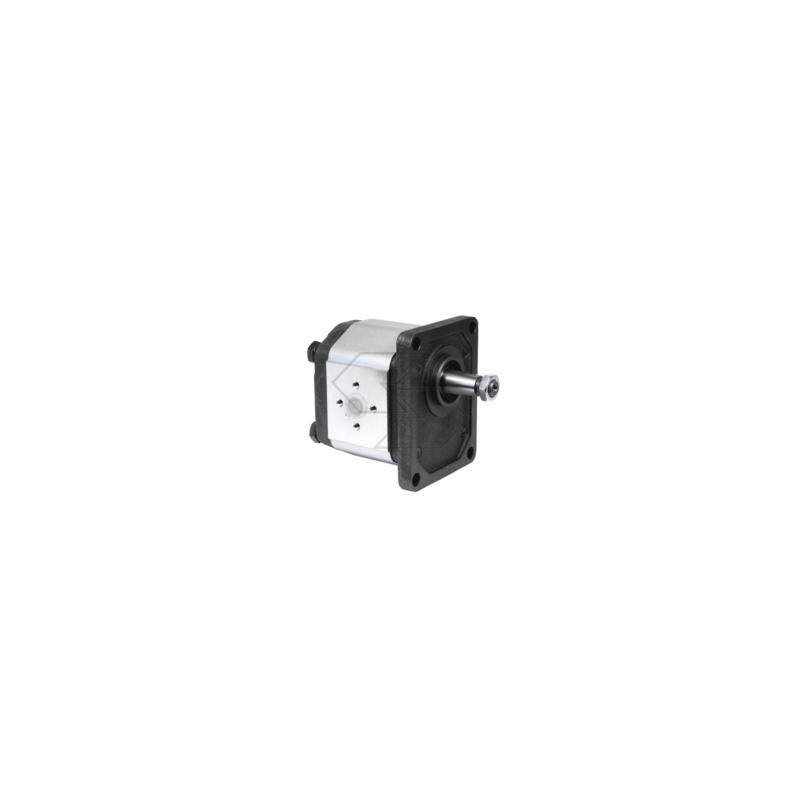

Gear pump group 2 right rotation - 2VP 6D - displacement 6 cm³ A09824
€202.71
€233.00
Save 13%| Name | Gear pump group 2 right rotation - 2VP 6D - displacement 6 cm³ |
|---|---|
| MPN | A09824 |
| EAN | 8023668150155 |
| Information | Technical information: Type 2VP 6D |
| Notes | Gear pump group 2 right B (intake flange center distance): 30 mm D (Intake flange hole): 13 mm L (distance between fixing holes): 46 mm Type: 2VP 6D H (SUCTION flange drill bits): M6 M (distance between fixing holes): 96 mm Displacement CC: 6 h (flange drill bits DELIVERY): M6 Pressure P1: 270 bar Pressure P2 (bar): 285 bar Pressure P3: 300 b (distance between delivery flanges): 30 mm d (flange hole delivery): 13 mm Revolutions (rpm): 4000 |
8023668150155
Data sheet
Specific References
Gear pump group 2 right rotation - 2VP 6D - displacement 6 cm³ A09824
€202.71
€233.00
Save 13%
