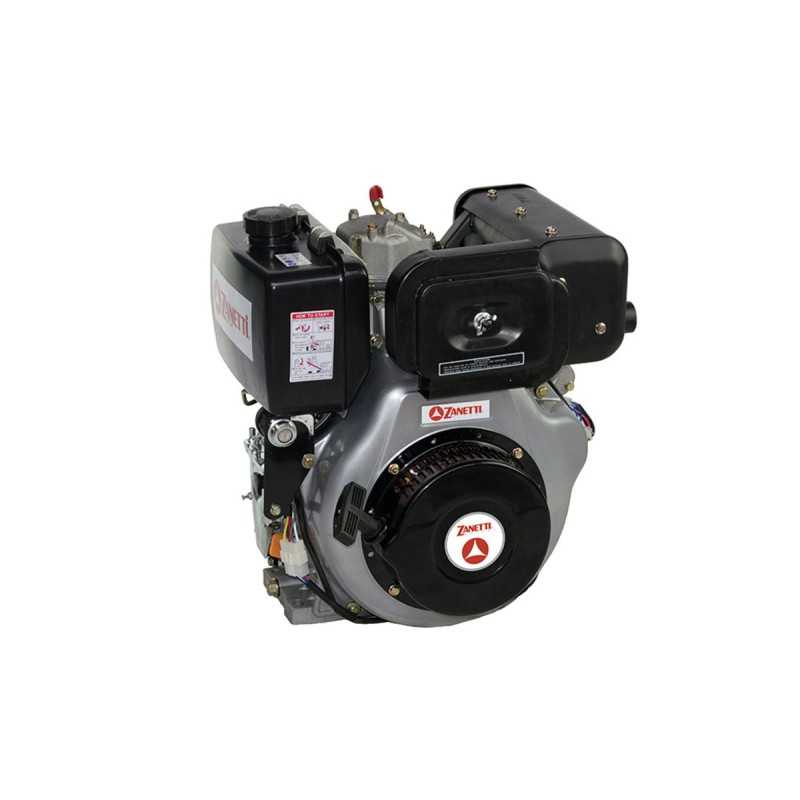

Complete ZANETTI DIESEL engine ZDM86C6EV tapered horizontal shaft Ø 26 mm electric start The air-cooled ZDM diesel engines with horizontal shaft, in versions from 247 to 997 cc, are available in various configurations, particularly suitable for powering a wide range of products for agricultural, construction and industrial use. TECHNICAL DATA Bore x stroke 86x72 mm Displacement 418 cc Compression ratio 19:1 Maximum power kW 6.3 Engine revs (rpm) 3600 Feeding Diesel Starting Electric Starting Anti-clockwise rotation from PTO Air filter Dry Tank capacity (Lt) 5.5 Oil sump capacity (Lt) 1.65 Dimensions mm (LxWxH) 420x440x495 Dry weight (Kg) 48 MG
