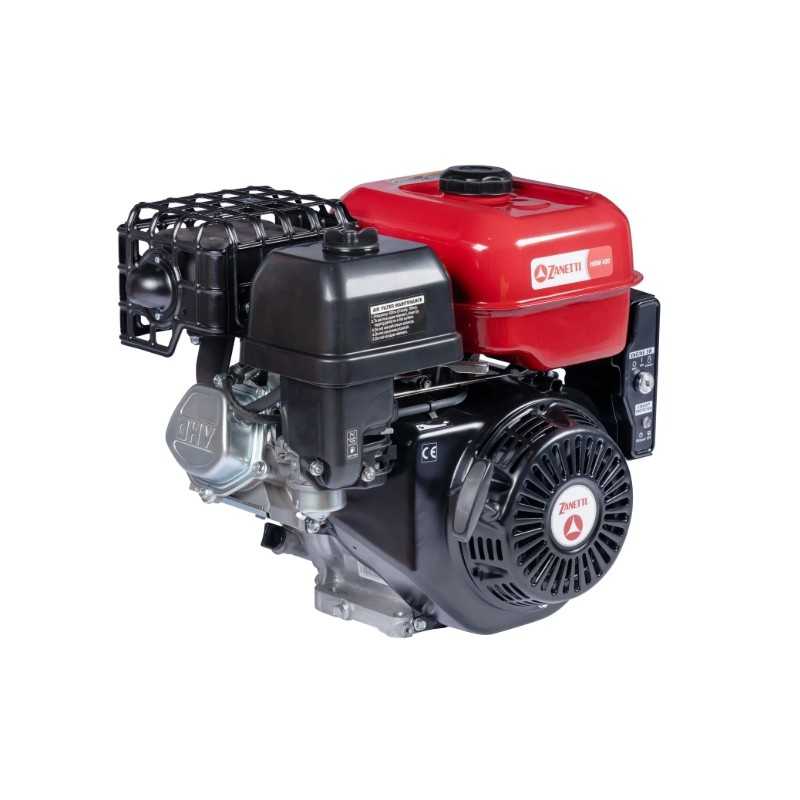

COMPLETE ENGINE
ZANETTI
HBM 420 L3EV

The 420 petrol engines
are the first of the new "Heavy Duty" range
of the Zanetti characterized by efficiency,
Resistance, functionality and reliability.
The solid design allows easy
Integration into applications
on machines for professional use.

TECHNICAL DATA
Bore x stroke (mm): 90x66
Tree: Horizontal
Shaft diameter (mm): 25.4
Cylinder capacity (cc): 420
Compression ratio 9:1
Maximum power (kW): 9
Engine rpm (rpm): 3600
Fuel: Petrol
Start: Self-winding/ Electric
Rotation: Clockwise from PTO
Air filter: Cyclone filter/ Dry
Tank capacity (Lt): 7.3
Capacity of the oil cup (Lt): 1.1
Dimensions mm (LxWxH): 480X425X505
Dry weight (kg) 30.5

CODE: HBM420L3EV
