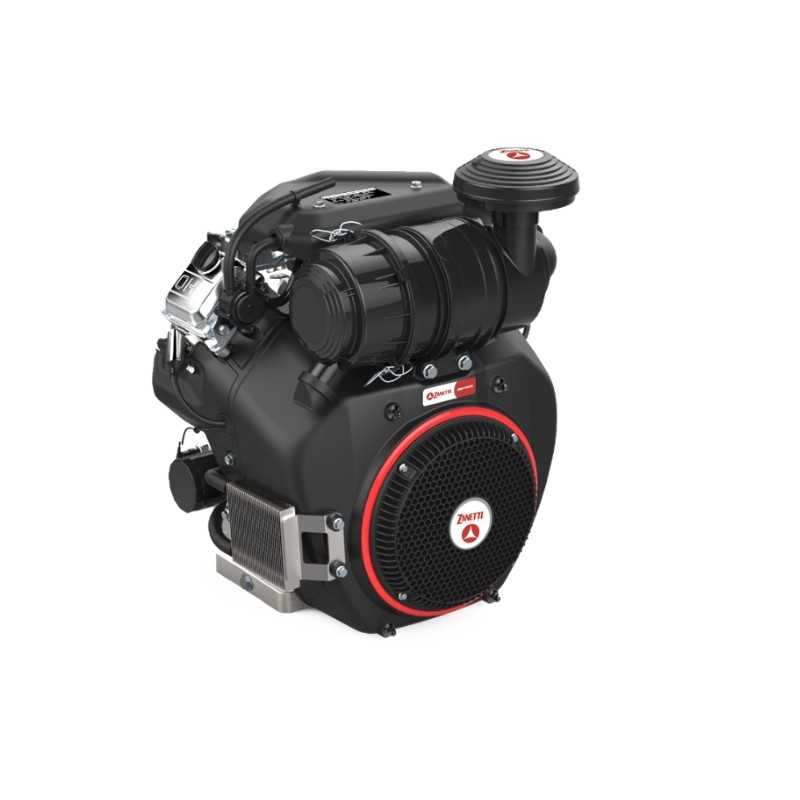

COMPLETE ENGINE
ZANETTI
ZBM 1000/2 L15EV

The ZBM 1000/2 twin-cylinder petrol engine
4-stroke with horizontal shaft
is a very valuable
Allied in the agricultural, construction and industrial fields.
With a modest capacity of 999 cc,
a powerful and extra-powerful engine.
Higher power, lower consumption,
and low emissions thanks to compact exhaust
' already installed and compliant with Stage V emissions standards,
OHV configuration.
Examples of intended uses: Biotriturators, Chipper,
Power generating sets, motor carriages,
Water Cleavers, High-pressure Cleaners,
Industrial machinery, etc...

TECHNICAL DATA
Bore x stroke (mm): 90x78.5
Cylinder capacity (cc): 999
Compression ratio 9.0:1
Maximum power (kW): 24
Engine rpm (rpm): 3600
Fuel: Petrol
Start: Electric
Rotation: Clockwise from PTO
Air filter: Dry
Capacity oil cup (Lt): 2,5
Dimensions mm (LxWxH): 605x585x560
Dry weight (kg): 56.7

CODE: ZBM1000/2L15EV
