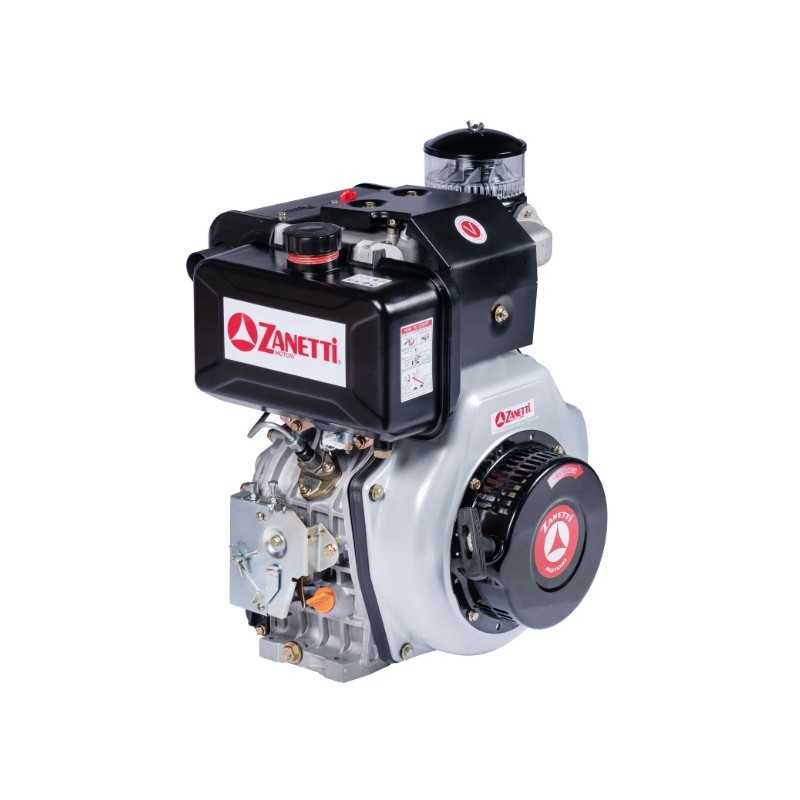

Complete engine
ZANETTI
ZDM88C1MV
Horizontal conical shaft Diameter 23 with adapter flange

ZDM diesel engines with horizontal shaft, air-cooled, in the 247 to 474 cc versions
are available in different configurations, particularly suitable for motorizing a wide range of
range of products for agricultural, construction and industrial use.

TECHNICAL DATA:
Bore x stroke (mm): 86x72
Cylinder capacity (cc): 474
Compression ratio: 19:1
Maximum power kW: 7.5
Engine rpm (rpm): 3600
Power: Diesel
Start: Self-winding
Rotation: Clockwise from PTO
Air filter: Oil bath
Tank capacity (Lt): 5.5
Capacity oil cup (Lt): 1,65
Dimensions mm (LxWxH): 420x440x495
Dry weight (Kg): 48/53
