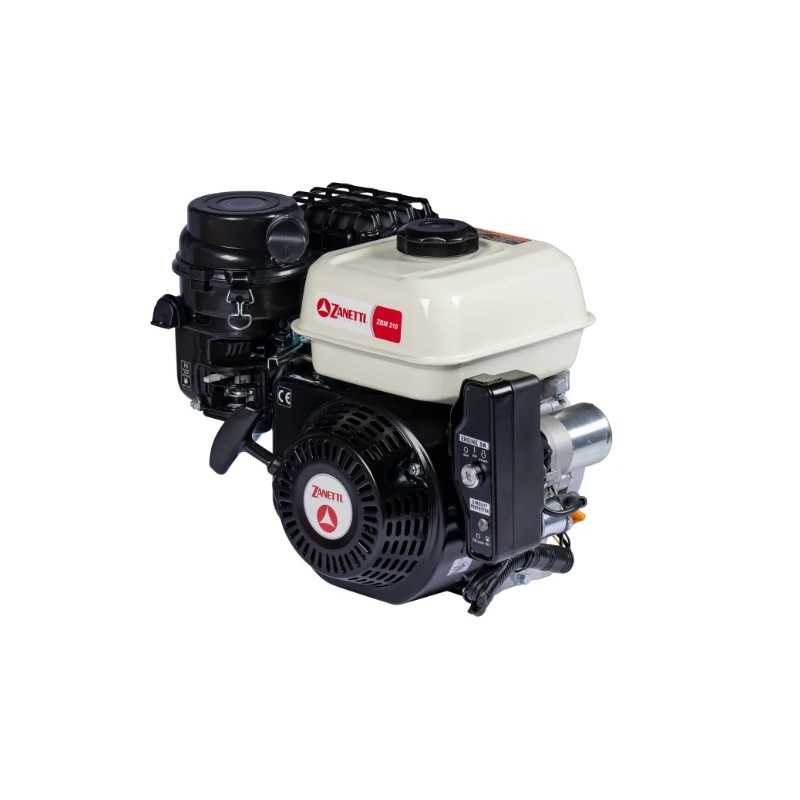

Complete engine
ZANETTI
ZBM210L4V
Horizontal shaft, cylindrical, diameter 20

Single cylinder ZBM petrol engines with horizontal shaft, OHV, air-cooled, in the versions
208 to 460 cc are available in different configurations, especially suitable for motorizing
A wide range of products for agricultural, construction and industrial use.

TECHNICAL DATA:
Bore x stroke (mm): 70x54
Cylinder capacity (cc): 208
Compression ratio: 8.6:1
Maximum power kW: 4.14
Engine rpm (rpm): 3600
Fuel: Petrol
Starting: self-winding
Rotation: Clockwise from PTO
Air filter : dry
Tank capacity (Lt): 2.6
Capacity of the oil cup (Lt): 0.6
Dimensions mm (LxWxH): 365x320x345
Dry weight (kg): 15.5/18.5
