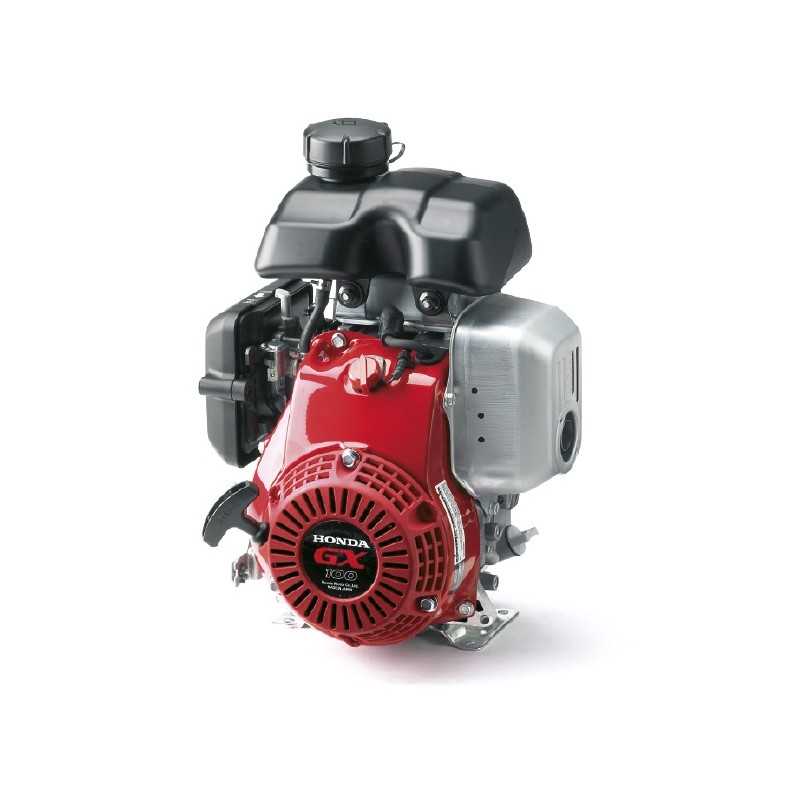

HONDA GX100 4-STROKE HORIZONTAL SHAFT 4-STROKE ENGINE WITH GEAR The GX100 engine is recommended for a wide range of professional construction machinery, portable power generators, motor pumps, and other industrial applications. The OHC configuration makes the engine compact, lightweight, and thanks to the oil-bath timing belt and appropriate silencer, makes it very quiet. The special steel cylinder liner and ball bearings guarantee reliability and durability of the engine. The engine meets all the most stringent regulations in the world. The compact and thermally efficient combustion chamber ensures particularly low fuel and lubricating oil consumption. CHARACTERISTICS: Shaft: Conical Ø-crankshaft 17 mm Engine type: Horizontal shaft OHC engine, eight-stroke cycle, 4-stroke, cast iron cylinder Bore x stroke: 56 x 40 mm Displacement: 98 cm3 Compression ratio: 8.5 : 1 Net power: 2.1 kW (2.8 HP) / 3 600 rpm Continuous rated power: 1.4 kW (1.9 HP) / 3 000 rpm 1.7 kW (2.3 HP) / 3 600 rpm Maximum torque: 5.7 Nm / 0. 58 kgfm / 3 600 rpm Starting: Recoil Fuel tank capacity: 0.77 Litres Fuel consumption at continuous power: 0.88 Litres/hour - 3 600 rpm Oil sump capacity: 0.4 Litres Dimensions (L x W x H): 287 x 304 x 418 mm Dry weight: 10.6 kg CODE: GX100KRAA The warranty is valid ONLY when using SAE 30 lubricating oil, preferably BRIGGS STRATTON CZ
