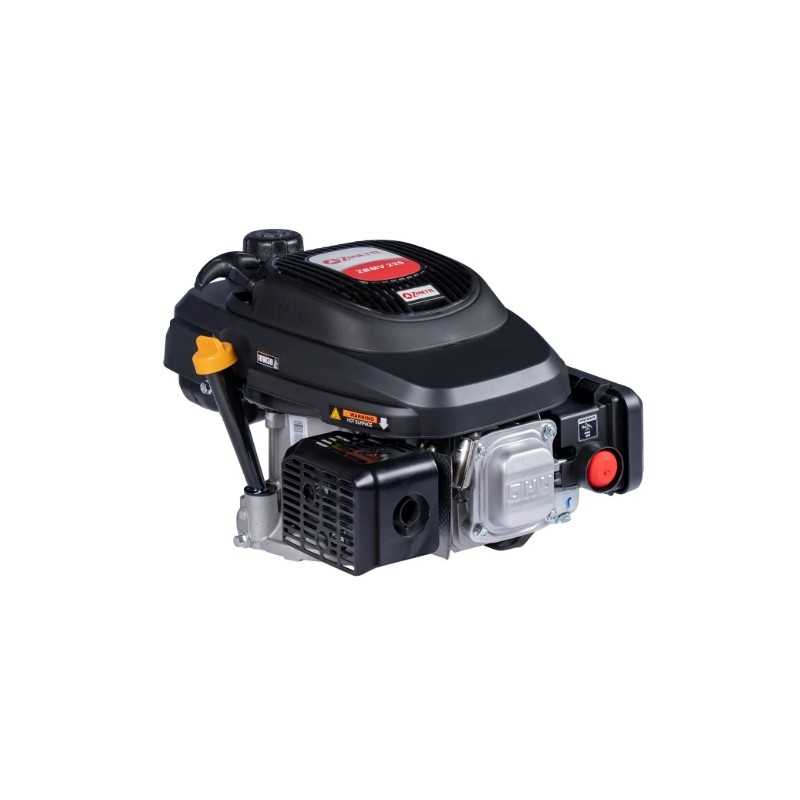

COMPLETE PETROL ENGINE

ZANETTI ZBMV225L10



TECHNICAL DATA SHEET

Bore x stroke (mm): 72x55

Displacement (cc): 224

Compression ratio: 8.2:1

Maximum power (kW): 4.3

Engine speed (rpm): 3600

Power Source: Petrol

Start: Self-recoil/Electric

Rotation: Counterclockwise from PTO

Air filter: Dry

Primer: Yes

Tank capacity (Lt): 1.3

Oil pan capacity (Lt): 0.6

Dimensions mm (LxWxH): 415x345x270

Dry weight (kg): 12.8

Shaft type: Vertical cylindrical L10 diameter 25 x 80

Flywheel: Heavy





CODE:ZBMV225L10
