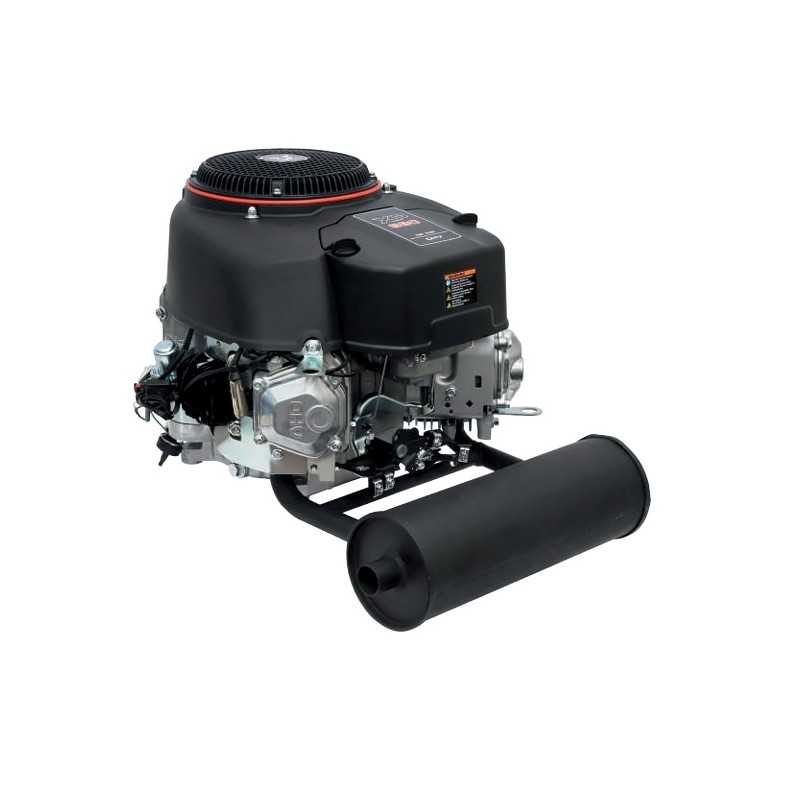

COMPLETE ENGINE

FOR TRACTOR MOWER

ZONSEN XP680



CHARACTERISTICS

Displacement: 679 cc

Bore x Stroke: 78 x 71 mm

Rated power: 14.5 kW / 20 HP / 3,600 rpm

Maximum torque: 42 Nm / 2,600 rpm

Idle speed: 1,750 ± 150 r/min

Starting system: Electric / E-start

Oil (capacity/type): 1,900 mL / SAE 10W-30

Tank capacity: /

Fuel consumption: ≤ 370 g/Kw.h

Engine size: 328 x 415 x 438 mm

Box size: 500 x 460 x 520 m

Weight: 50.8 kg

Certifications: CE, EC(V), EPA, CARB





CONFIGURATION

Shaft: 1'' cylindrical vertical

Air filter: Dry double element

Starter: Electric

Flywheel: Heavy Duty for Ride-On Mowers





CODE:XP680BE-V3B00
