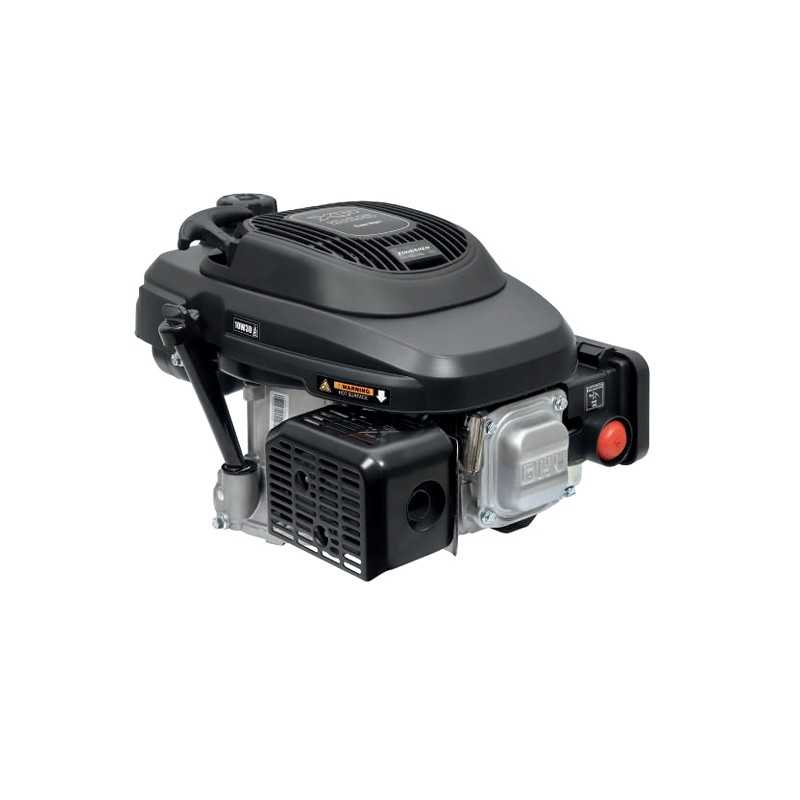

COMPLETE ENGINE

FOR MOTOR HOE

ZONSEN XP225

CHARACTERISTICS

Displacement: 224 cc

Bore x Stroke: 72 x 55 mm

Rated power: 4.2 kW / 6 HP / 3,600 rpm

Maximum torque: 11.5 Nm / 3,000 rpm

Idle speed: 1,800 ± 200 r/min

Starting system: Recoil

Oil (capacity/type): 600 mL / SAE 10W-30

Tank capacity: 1.4 L

Fuel consumption: ≤ 374 g/Kw.h

Engine size: 418 x 345 x 270 mm

Box size: 435 x 365 x 415 mm

Weight: 13.2 kg

Certifications: CE, EC(V), EPA, CARB

CONFIGURATION

Shaft: 22x60 mm vertical cylindrical

Air filter: Dry paper

Starter: Self-recoil

Flywheel: Heavy for tiller

CODE:XP225A-V11A03
