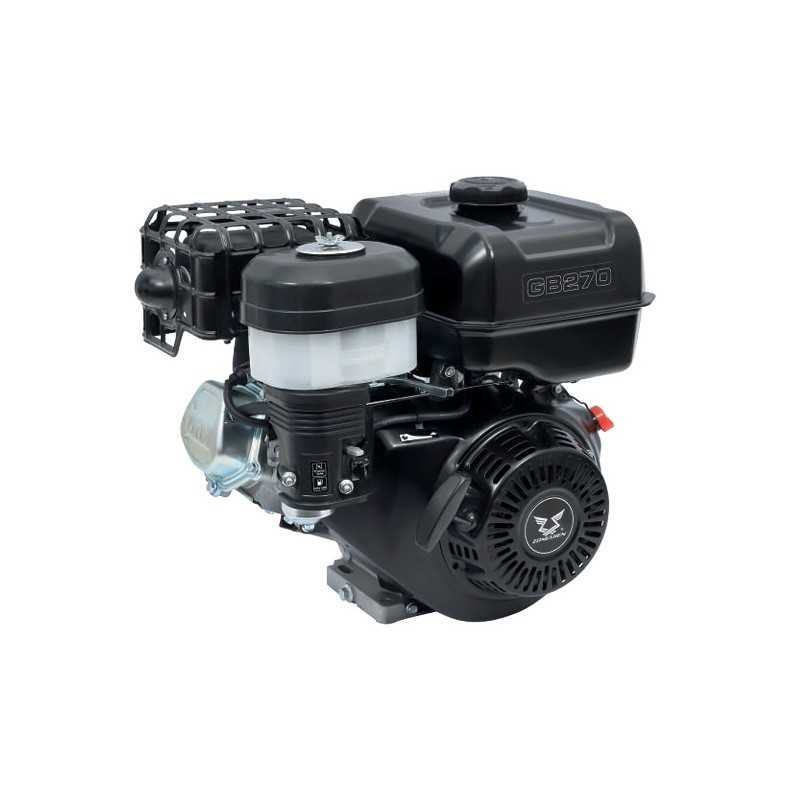

COMPLETE ENGINE

FOR MOTOR HOE

ZONSEN GB270

CHARACTERISTICS

Displacement: 270 cc

Bore x Stroke: 77 x 58 mm

Rated power: 6.2 kW / 8.5 HP / 3,600 rpm

Maximum torque: 15.5 Nm / 3,000 rpm

Idle speed: 1,650 ± 150 r/min

Starting system: Recoil

Oil (capacity/type): 1,100 mL / SAE 10W-30

Tank capacity: 7.5 L

Fuel consumption: ≤ 374 g/Kw.h

Engine size: 440 x 355 x 454 mm

Box size: 480 x 425 x 505 mm

Weight: 29.2 kg

Certifications: CE, EC(V), EPA, CARB

CONFIGURATION

Shaft: 23 mm horizontal tapered

Air filter: Oil bath

Starter: Self-recoil

CODE:GB270C-H6A01
