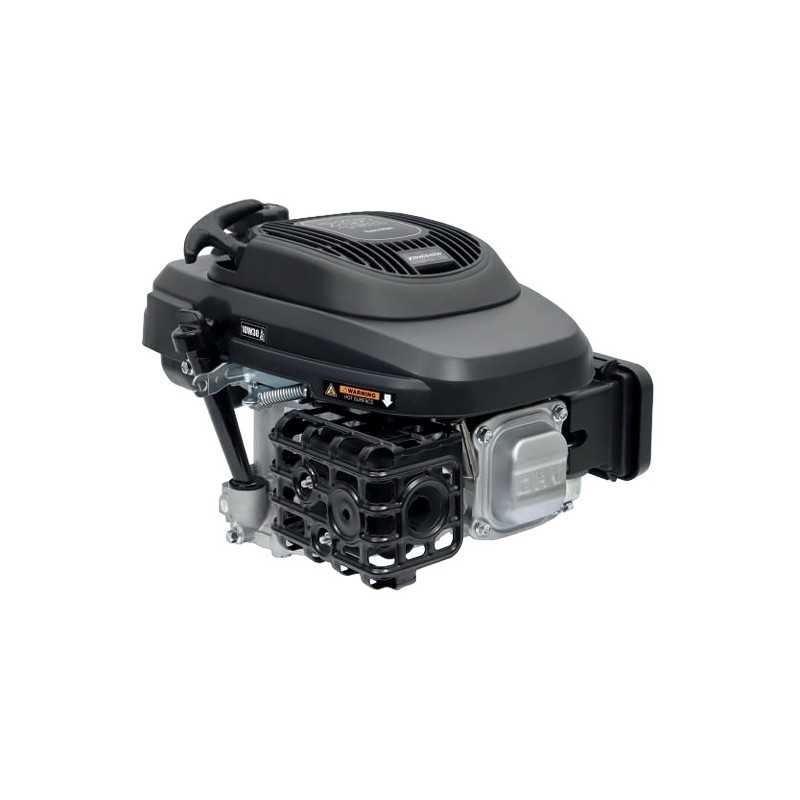

COMPLETE ENGINE

FOR MOTOR HOE

ZONSEN XP160



CHARACTERISTICS

Displacement: 161 cc

Bore x Stroke: 65 x 48.4 mm

Rated power: 2.6 kW / 3.5 HP / 3,600 rpm

Maximum torque: 7 Nm / 3,000 rpm

Idle speed: 1,800 ± 200 r/min

Starting system: Recoil

Oil (capacity/type): 500 mL / SAE 10W-30

Tank capacity: 0.9 L

Fuel consumption: ≤ 395 g/Kw.h

Engine size: 350 x 290 x 320 mm

Box size: 380 x 320 x 370 mm

Certifications: CE, EC(V), EPA, CARB



CONFIGURATION

Shaft: 22x60 mm cylindrical

Air filter: Dry

Starter: Self-recoil

Flywheel: Heavy for tiller

Weight: 11.8 kg



CODE:XP160A-V11A03
